Tsubaki Seamless Light Type V Addressable

Product description

Built-in DMX control circuit enables directly connection to a DMX controller.
Addressable DMX controll, Full color and White LEDs provide wonderful effect for entertainment application.
Easy installation for both straight line and curved line, with original accessories.

Remarks

Minimum bending radius is R60mm, only for vertical direction.
This product cannot be bent horizontally.
This product cannot be cut on-site.

Specification

Light source: LED

LED pitch(mm): 9.5

Beam angle (°）: 115

Case material: Silicone rubber

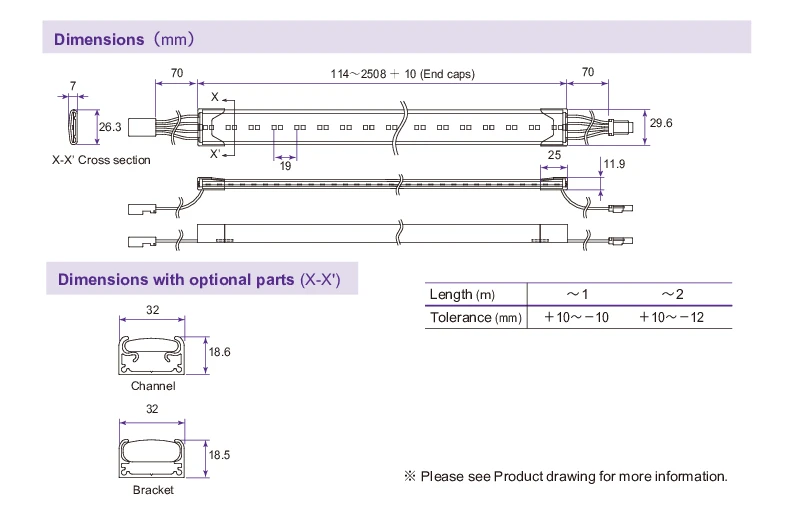

External dimensions: W26.3 × H7 mm
(W29.6 × H11.9 mm with End cap)

Weight: 200g/m

Maximum length in series connection: 5m (114mm x 44pcs + End-caps)

Lead wire: Silicone rubber wire

Input voltage: DC24V

Input voltage tolerance: ±5%

Operating environment: Outdoor/Indoor

Operating Temperature（℃）: -10℃〜+55℃ (14℉〜131℉)

Water resistance: IP67(JIS C 0920)rated

Bending direction: Vertical (Top bend)

Minimum Bending Radius (mm): 80

Remarks

DMX Controller Conforming to DMX512 Standard
Please contact our sales for recommended models.

From the top, 1ch:R / 2ch:G / 3ch:B / 4ch:W ... will be addressed automatically.
When concatenated, DMX addresses will be consecutive from the unit in front.
IP67 rated…Dust tight and water resistant, (Immersion, up to 1 m depth within 30 minutes.)
Please note that there is some variation in color among LED's.
